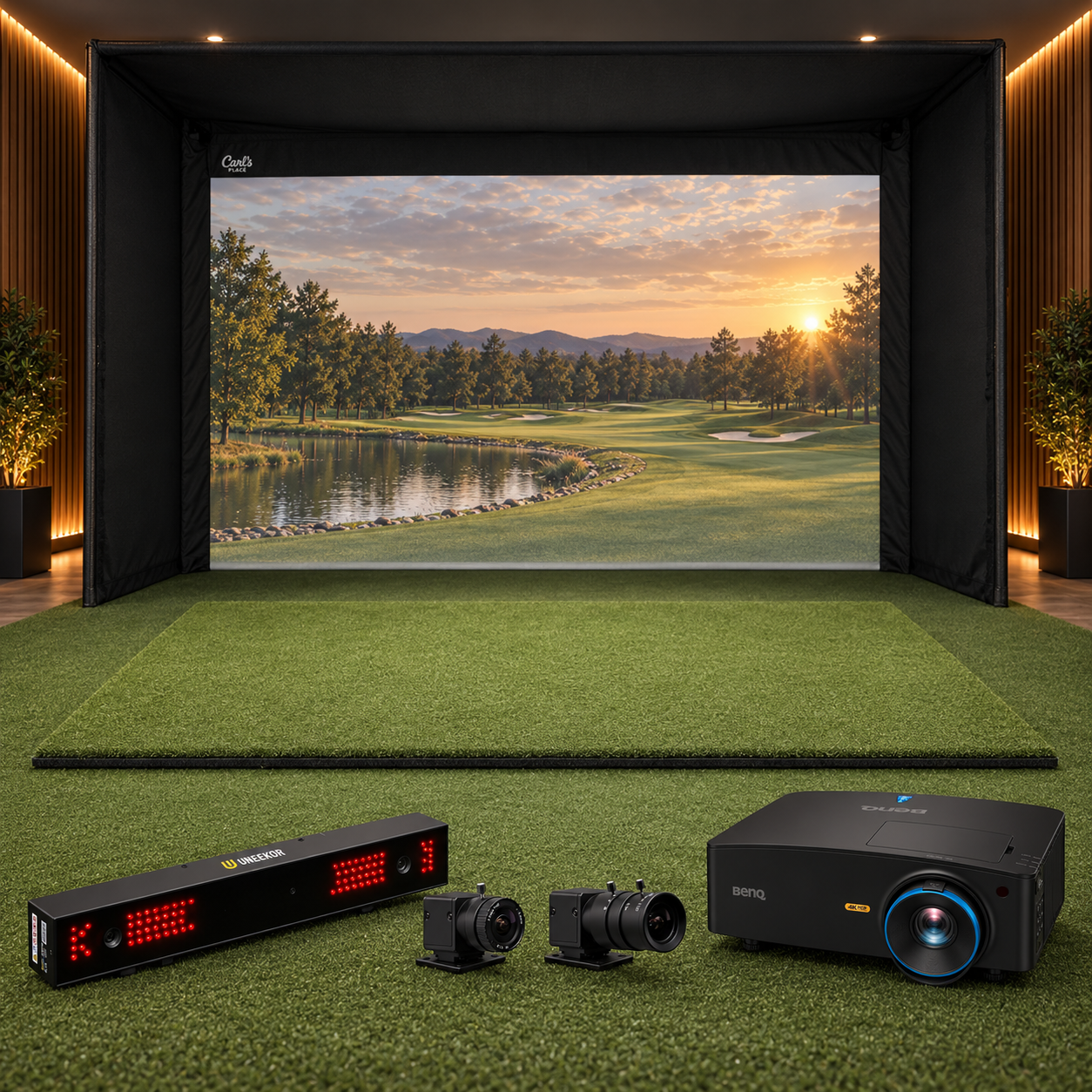

EYE XR Pro Golf Simulator Package

Floor stays clear

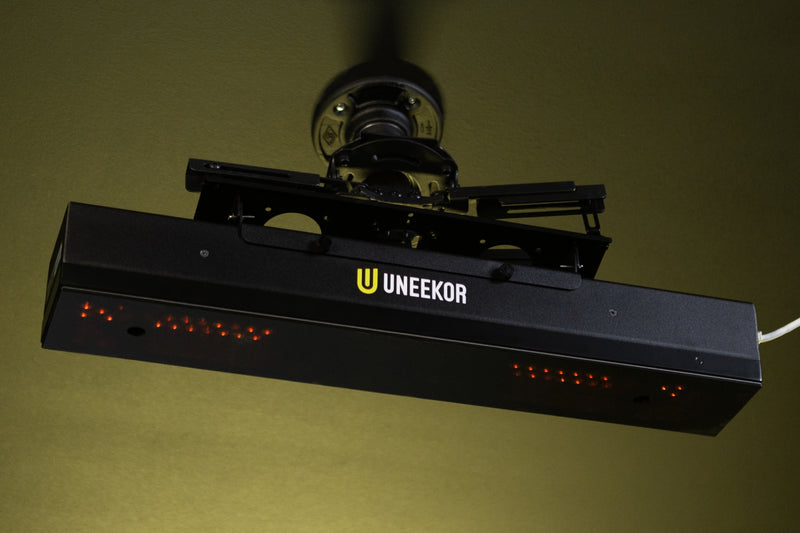

The EYE XR mounts on the ceiling behind the golfer, so nothing sits beside the ball and players can set up from either side.

Sticker free club data
High speed infrared cameras read the ball's dimples and track the club without reflective stickers, with 19 ball and club data points.

Swing video included
Swing Optix cameras come with the EYE XR for synced face on and down the line replay.

A complete Pro enclosure

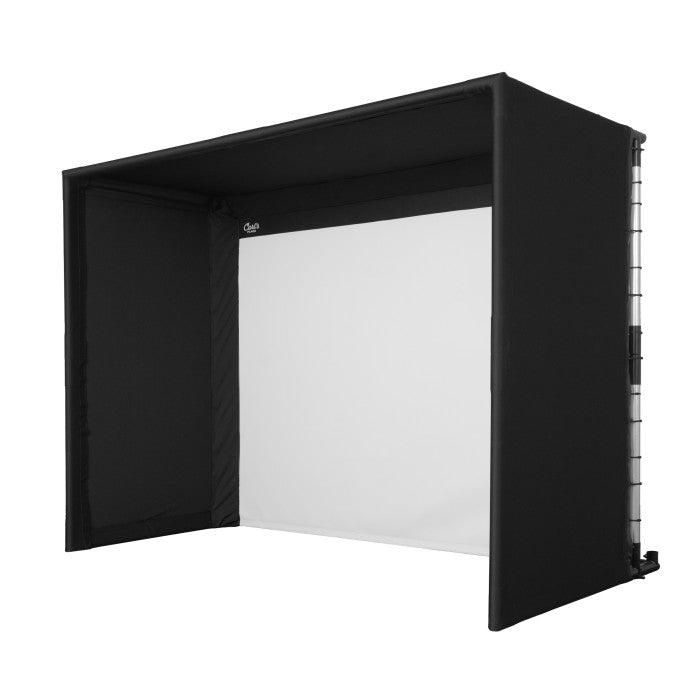

Carl's Place Pro enclosure and impact screen are paired with the matching pipe framing kit, in six sizes and up to four depths.

4K laser projection
The BenQ LK936ST delivers 4K detail and 5,100 ANSI lumens from a short throw position.

Room to swing
The 5 × 10 ft Country Club Elite mat gives right and left handed golfers a full hitting area that accepts a real tee.

• Launch monitor: Uneekor EYE XR, rear ceiling mounted
• Tracking: High speed infrared cameras with Dimple Optix ball tracking
• Club data: Sticker free club tracking, 19 ball and club data points
• Swing cameras: Swing Optix cameras included with the EYE XR
• Player orientation: Right and left handed play
• Enclosure: Carl's Place Pro Golf Simulator Enclosure Kit with matching pipe framing kit
• Screen material: Premium White or High Contrast Gray
• Nominal enclosure sizes (height × width): 8 × 10.5, 8.5 × 11, 8.5 × 14.5, 9 × 12, 10 × 13 or 10 × 15.5 ft
• Enclosure depths: 5 or 8 ft for all sizes; 10 or 15 ft also available for 9 × 12, 10 × 13 and 10 × 15.5 ft
• Projector: BenQ LK936ST, 4K UHD (3840 × 2160), 5,100 ANSI lumens, laser light source
• Projector throw ratio: 0.81 to 0.89
• Hitting mat: Country Club Elite, 5 × 10 ft, accepts a real tee
• Recommended room: about 10 ft ceiling, 13 ft width and 16 ft depth
• Computer: Compatible Windows PC required and sold separately

Launch monitor: One Uneekor EYE XR with its manufacturer supplied mounting bracket, standard accessories and Swing Optix cameras.

Enclosure: One Carl's Place Pro enclosure in your selected size, depth and screen material, with BlackStop fabric surround, foam inserts, fittings and assembly diagram, plus the pipe framing kit matched to that size and depth.

Projection: One BenQ LK936ST 4K laser projector with its manufacturer supplied remote, power cord and documentation.

Hitting area: One Country Club Elite hitting mat, 5 × 10 ft.

Sold separately: Windows PC, paid simulator software, projector ceiling mount, longer display and network cabling, landing turf, flooring, golf clubs, golf balls and installation service.

Room planning: Uneekor recommends a room about 13 ft wide and 16 ft deep with a ceiling of about 10 ft for the EYE XR. Enclosure sizes are nominal, not minimum room dimensions. Allow space for the full frame, the hitting position and a full driver swing.

Enclosure clearance: Carl's recommends about 12 inches behind the enclosure, at least 2 inches above and 2 to 3 inches on each side. These clearances do not replace the space needed for a safe swing.

Launch monitor placement: Mount the EYE XR on the ceiling behind the golfer following Uneekor's mounting and calibration instructions, on a structurally suitable surface.

Computer and software: A compatible Windows PC with a wired Ethernet connection is required. Check Uneekor's current system requirements for your software and output resolution.

Projector installation: Confirm the LK936ST mounting distance, image size and cable route before installation. A projector mount and installation specific cabling are not included.

Delivery and assembly: Confirm delivery access and current timing with Elite Swing Studio before ordering. Assembly, calibration and installation labor are not included.
