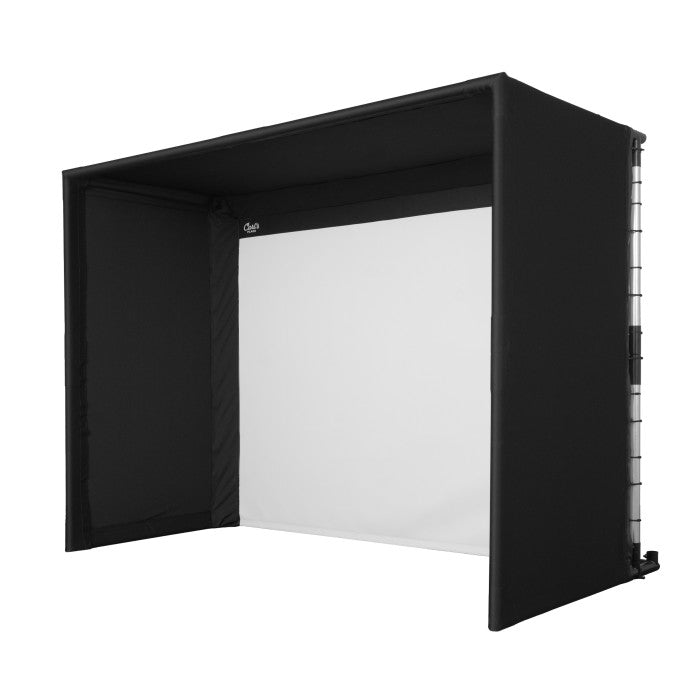

Carl's Place Pro Golf Enclosure Kit with Impact Screen

Built for Premium Golf Spaces

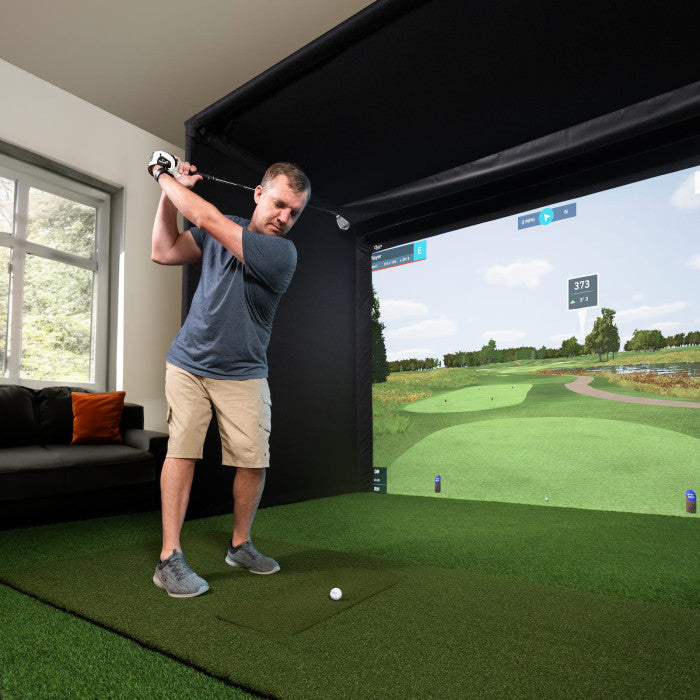

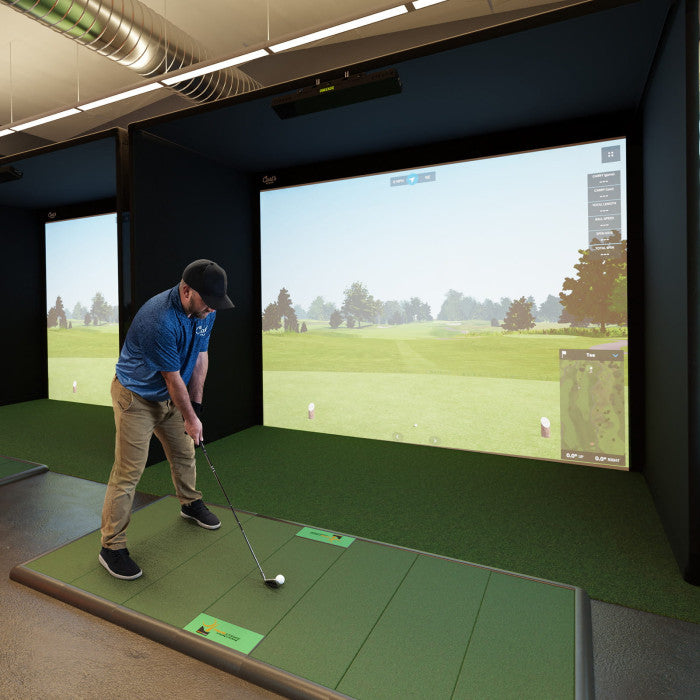

A substantial enclosure for dedicated home golf rooms, coaching studios, and commercial simulator bays.

Two Premium Screen Choices

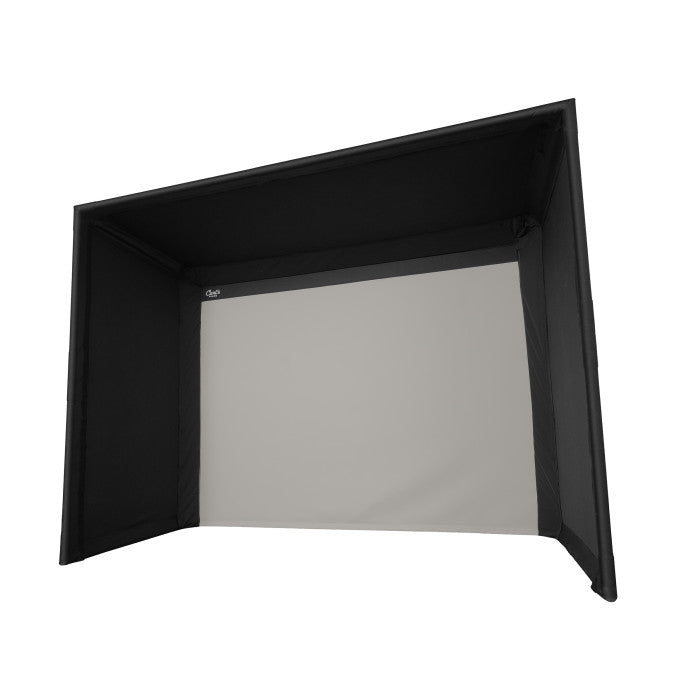

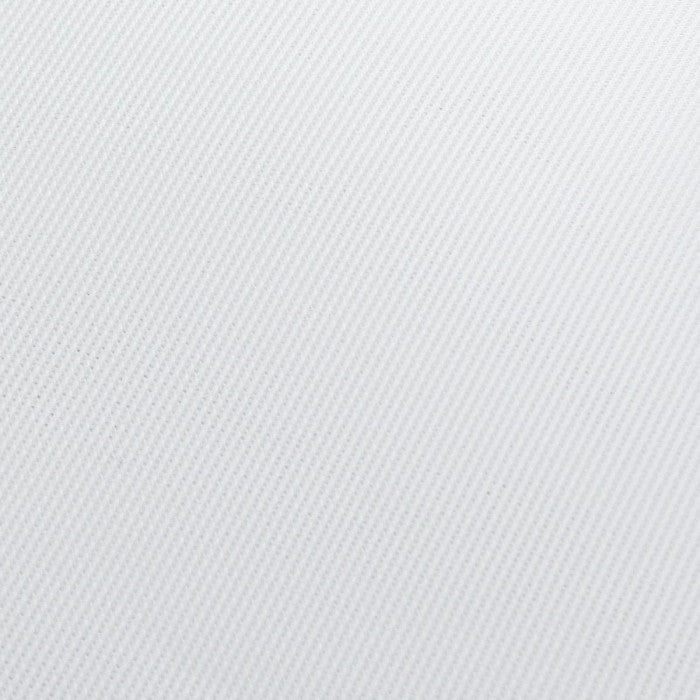

Premium White offers a smooth projection surface. High-Contrast Gray enhances black levels and contrast when ambient light is harder to control.

BlackStop™ Fabric Surround

The wraparound ceiling and sidewalls create a dark backdrop around your projected course.

2-Inch EMT Frame Design

Heavy-duty fittings connect the separately purchased tubing. Choose a matching pipe kit or source and cut your own pipes using the supplied diagram.

Overhead Equipment Support

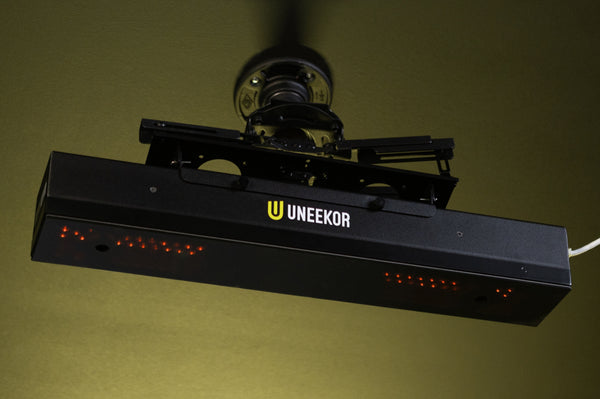

Mount compatible electronics to the front bar, or add the optional crossbar to position equipment farther into the enclosure.

Floor-to-Turf Screen

A cable-supported lower edge brings the screen down to the floor for a clean image transition.

Choose Your Fit

Six standard sizes with available depths shown in the selectors. Contact Elite Swing Studio for help planning a custom configuration.

STANDARD SIZE GUIDE

Listing names are nominal height × width. Use actual outer dimensions to check room fit. All dimensions below are inches.

Frame: 2-inch EMT tubing (2.197-inch / 55.8 mm actual outside diameter), sold separately.

• Cover: BlackStop™ wraparound ceiling and sidewalls.


• Screen options: Premium White or High-Contrast Gray.


• 8 × 10.5 — Outer H × W: 102 × 132.4; viewable H × W: 88.8 × 118.4; diagonal: 148; aspect ratio: 4:3; depths: 5 or 8 ft.


• 8.5 × 11 — Outer: 107 × 139.1; viewable: 93.8 × 125.1; diagonal: 156.4; ratio: 4:3; depths: 5 or 8 ft.


• 8.5 × 14.5 — Outer: 107 × 181.8; viewable: 94.4 × 167.8; diagonal: 192.5; ratio: 16:9; depths: 5 or 8 ft.


• 9 × 12 — Outer: 114 × 148.4; viewable: 100.8 × 134.4; diagonal: 168; ratio: 4:3; depths: 5, 8, 10 or 15 ft.


• 10 × 13 — Outer: 123 × 160.4; viewable: 109.8 × 146.4; diagonal: 183; ratio: 4:3; depths: 5, 8, 10 or 15 ft.


• 10 × 15.5 — Outer: 123 × 190.3; viewable: 110.2 × 176.3; diagonal: 207.9; ratio: 16:10; depths: 5, 8, 10 or 15 ft.


Depth is measured from screen to front frame. The rear fitting adds 9.5 inches to the footprint: 69.5, 105.5, 129.5 or 189.5 inches total. Allow a small manufacturing variance.

Your selected Premium White or High-Contrast Gray impact screen with bottom cable.

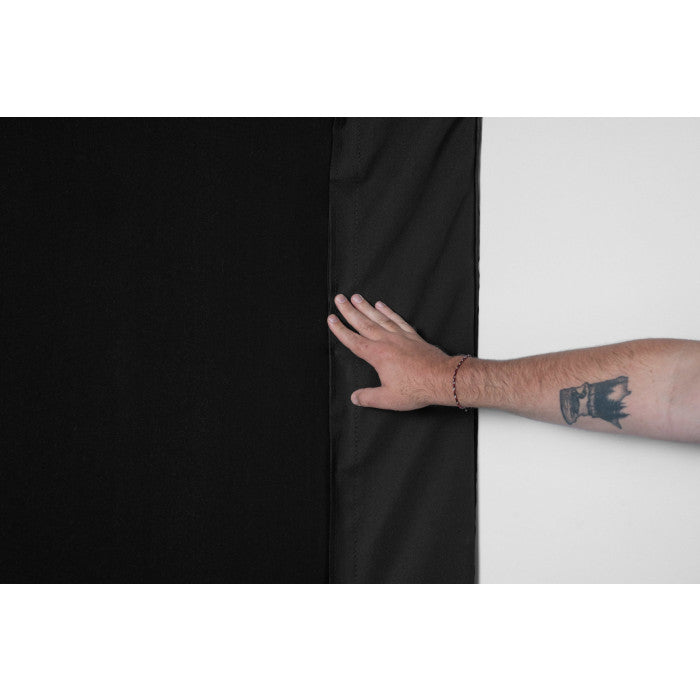

BlackStop™ wraparound enclosure cover and five detached flaps.

Foam inserts, frame connector fittings, zip ties, two cable receivers, two springs, and assembly hardware.

A frame diagram specific to your configuration, including pipe-cutting guidance for self-sourced tubing.

Sold Separately

Frame pipes are not included in the base enclosure price. Optional pipe framing kits, safety baffles, crossbars, back covers, and back-cover pipes must be ordered separately. Launch monitor, projector, mounts, computer, software, hitting mat, and turf are not included.

Need a complete setup? Call or text Elite Swing Studio at (619) 927-6193 for help matching accessories to your enclosure.

Room Requirements

Allow at least 2 inches above the enclosure and 2–3 inches on each side. Leave 12 inches behind the screen where possible; the rear fittings require a minimum of 9.5 inches.

Check actual outer dimensions in Specifications, then allow additional room for your swing, hitting position, and your launch monitor’s required distances. Enclosure depth alone is not the total room depth needed.

Assembly

Plan for approximately two hours with a helper. Have a stepladder, tape measure, rubber mallet, pliers, cutting tool, and 6 mm and 3/16-inch hex tools ready. If self-sourcing frame pipes, follow the configuration-specific cutting diagram supplied with your order.

Ordering Information

Each Pro Enclosure is made to order. Confirm the screen material, nominal size, depth, actual room fit, and pipe-framing plan before ordering. Base prices cover the enclosure kit and selected impact screen only.

Care

Use clean, unmarked golf balls and clean clubs. Check screen tension regularly and follow the assembly manual to manage bounceback.

Because this is a made-to-order product, contact us promptly about changes or cancellation; availability depends on production status and the applicable store policy.

For current production timing, delivery arrangements, custom sizing, or separately priced accessories, call or text Elite Swing Studio at (619) 927-6193. Shipping eligibility and charges depend on your order and destination.
