EYE MINI LITE Pro Golf Simulator Package

• Camera-based indoor practice. The Uneekor EYE MINI LITE provides ball and club feedback through a wired connection to a compatible Windows PC.

• A complete enclosure frame. Carl’s Pro enclosure and impact screen are paired with the matching pipe framing kit, so the frame pipes are included in this package.

• Screen choices for your room. Select Premium White or High-Contrast Gray, with six nominal enclosure sizes and the depths available for each size.

• 4K laser projection. The BenQ LK936ST pairs 4K UHD resolution with 5,100 ANSI lumens and a short-throw lens. Final placement depends on your chosen screen and room.

• Your choice of hitting area. Country Club Elite mat sizes range from 4 × 5 feet to 5 × 10 feet, with dense turf that accepts a real tee.

• A clear package total. Review included component prices and add size-matched enclosure accessories before moving your configuration into the cart.

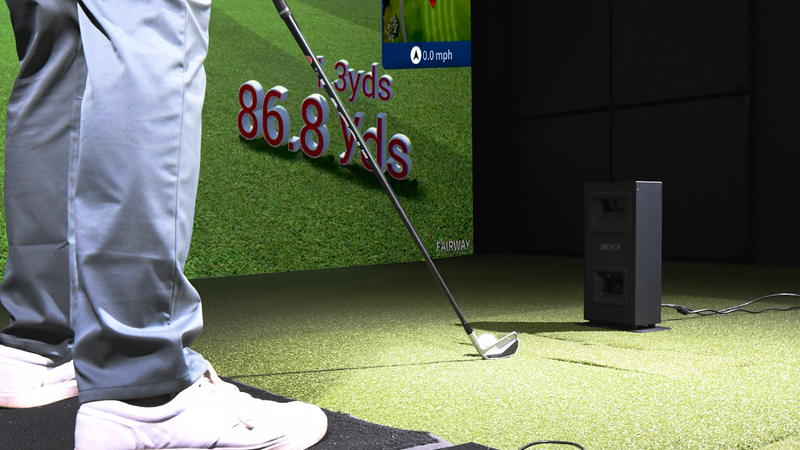

• Launch monitor: Uneekor EYE MINI LITE
• Tracking: Dual-camera indoor system
• Launch monitor connection: Wired Ethernet to a compatible Windows PC

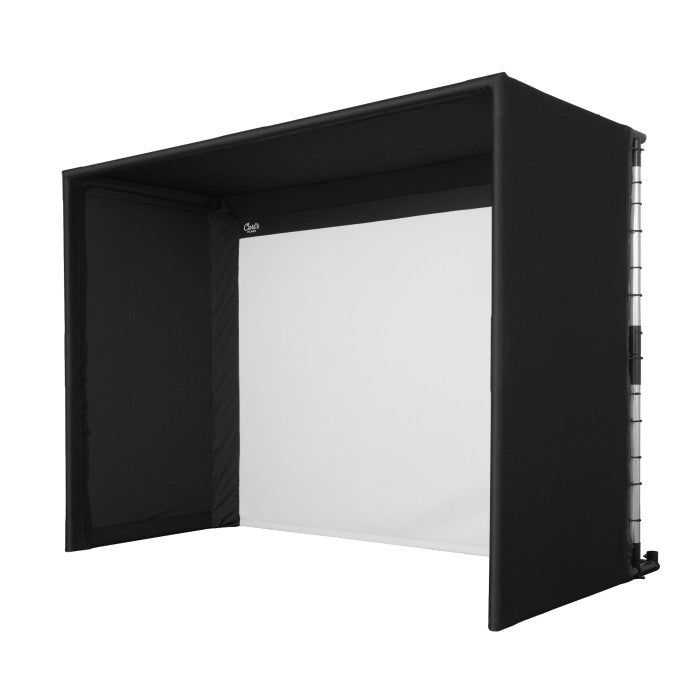

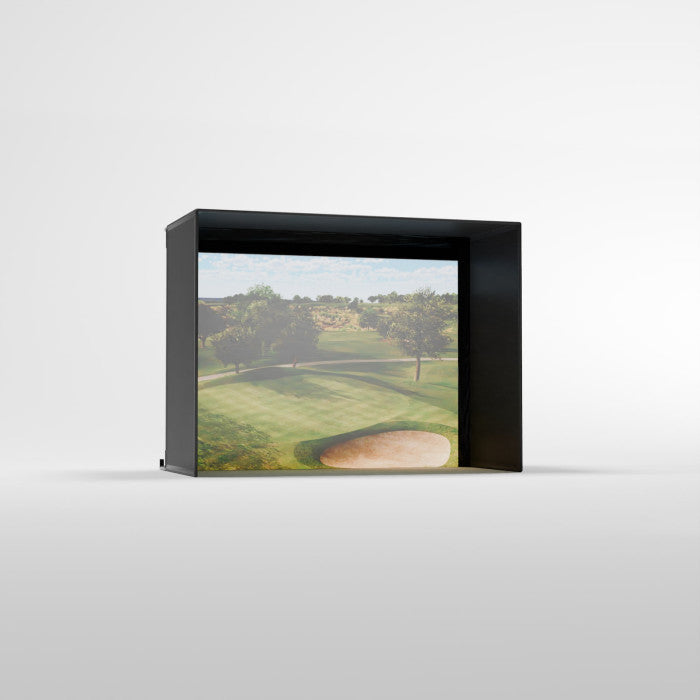

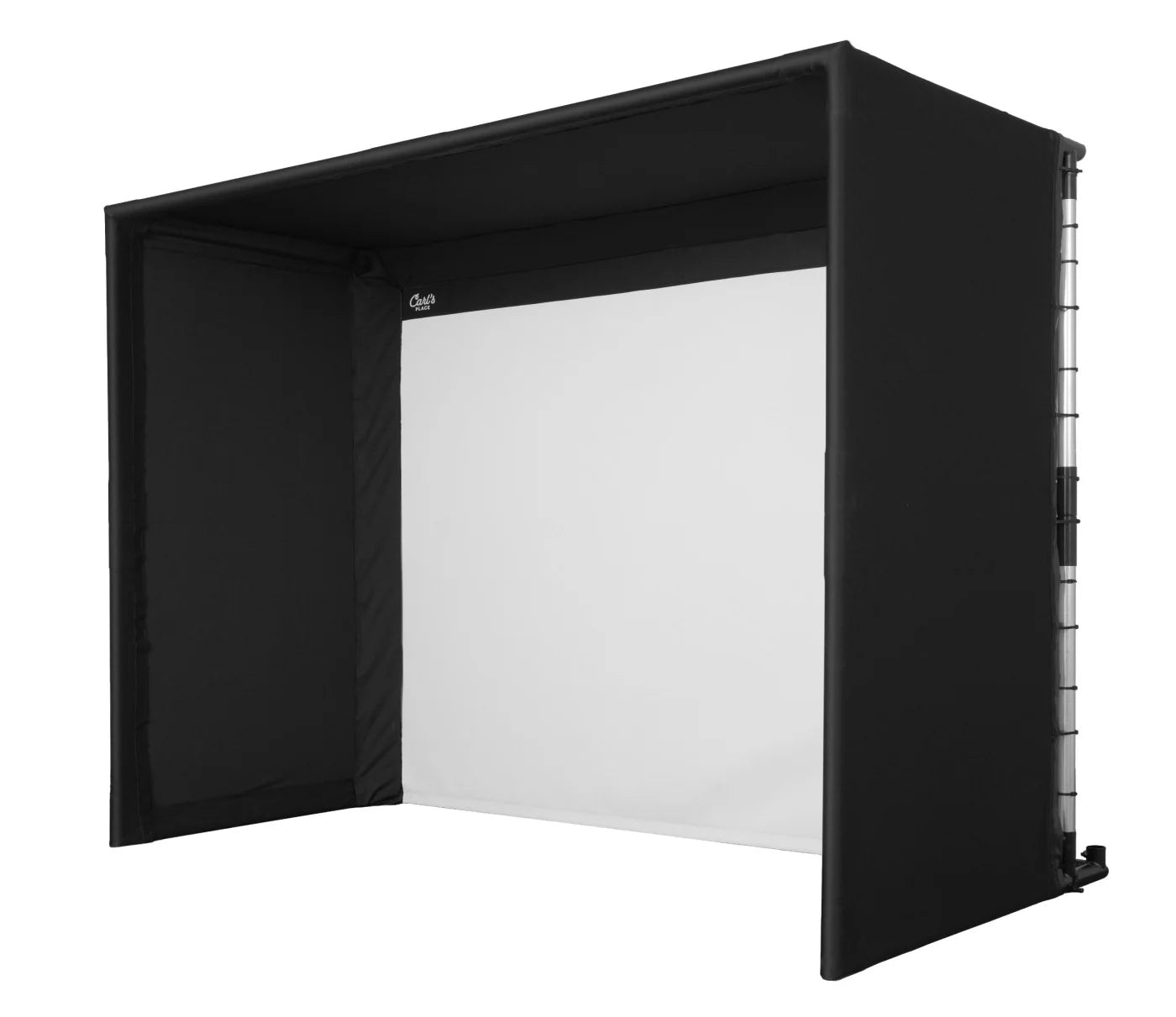

• Enclosure: Carl's Place Pro Golf Simulator Enclosure Kit
• Screen material: Premium White or High-Contrast Gray
• Nominal enclosure sizes (height x width): 8 x 10.5, 8.5 x 11, 8.5 x 14.5, 9 x 12, 10 x 13 or 10 x 15.5 ft
• Enclosure depths: 5 or 8 ft for all sizes; 10 or 15 ft also available for 9 x 12, 10 x 13 and 10 x 15.5 ft
• Frame: Matching pipe framing kit included; 2-inch EMT design
• Projector: BenQ LK936ST; 4K UHD (3840 x 2160); 5,100 ANSI lumens; laser light source
• Projector throw ratio: 0.81 to 0.89; confirm placement for the selected image format

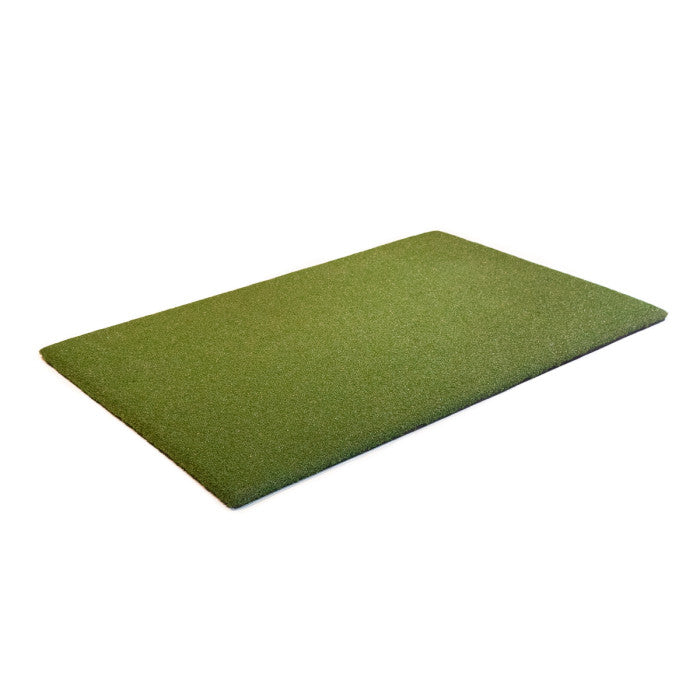

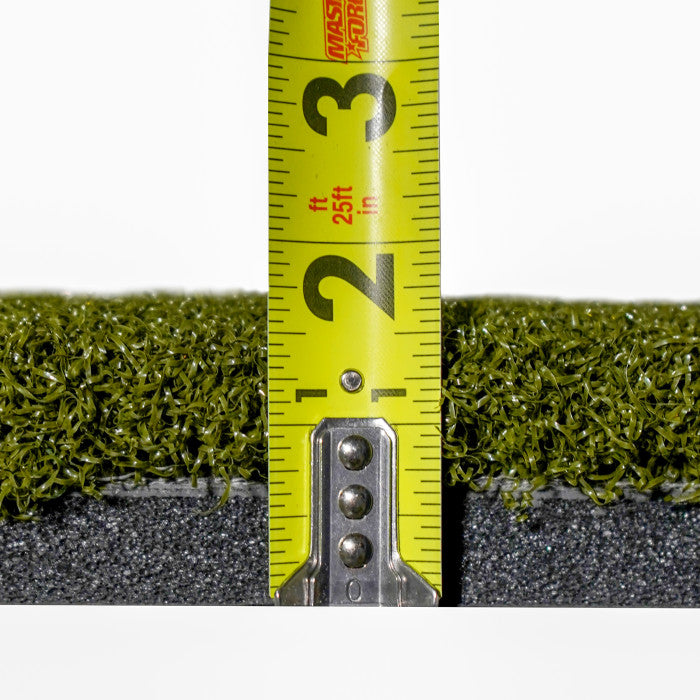

• Hitting mat: Country Club Elite; approximately 1.75 inches thick
• Mat sizes: 4 x 5, 5 x 5, 5 x 8 or 5 x 10 ft
• Use: Indoor simulator package
• Computer: Compatible Windows PC required and sold separately

• One Uneekor EYE MINI LITE launch monitor with its manufacturer-supplied standard accessories.
• One Carl's Place Pro enclosure in your selected size and depth, with your chosen impact screen, BlackStop fabric surround, foam inserts, fittings and assembly diagram.
• One pipe framing kit matched to the selected Pro enclosure size and depth.
• One BenQ LK936ST 4K laser projector with its manufacturer-supplied standard accessories.
• One Country Club Elite hitting mat in the selected size. Optional enclosure accessories are included only when selected and added to your order.

Room fit

• Use the enclosure’s actual outer dimensions, not its nominal size, and allow space for the golfer’s full swing, launch monitor, hitting position and projector. Confirm both left and right handed clearance if needed.

Enclosure clearance

• Carl’s recommends 12 inches behind the enclosure, with at least 9.5 inches needed for rear fittings, plus at least 2 inches above and 2–3 inches on each side. These clearances do not replace space needed for a safe swing.

Computer and software

• A compatible Windows PC and wired Ethernet connection are required. Check Uneekor’s current system requirements for your intended software and output resolution. Paid software plans and third-party course software are not included.

Projector installation

• Confirm the mounting distance, image format and safe cable route for the LK936ST before installation. A projector mount and installation-specific display cabling are not included.

Flooring and assembly

• Install on a suitable level surface and follow each manufacturer’s instructions. Landing turf, computer, golf clubs, balls and professional installation are not included.
