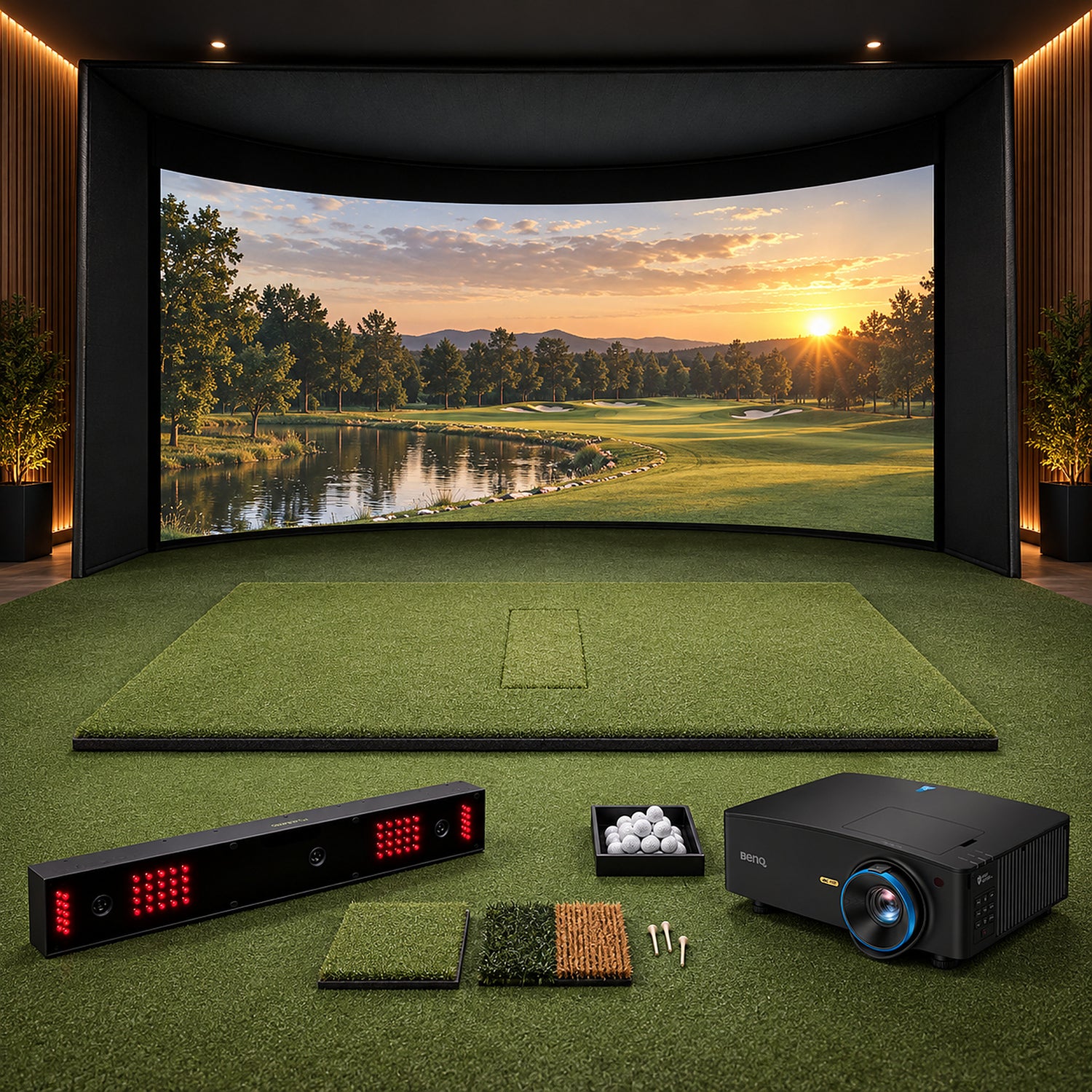

EYE XO2 Curved Golf Simulator Package

Immersive curved screen. Choose Premium White or High Contrast Gray, with six nominal enclosure sizes and three depths. The curved impact surface and black surround create a focused visual setting for practice and course play.

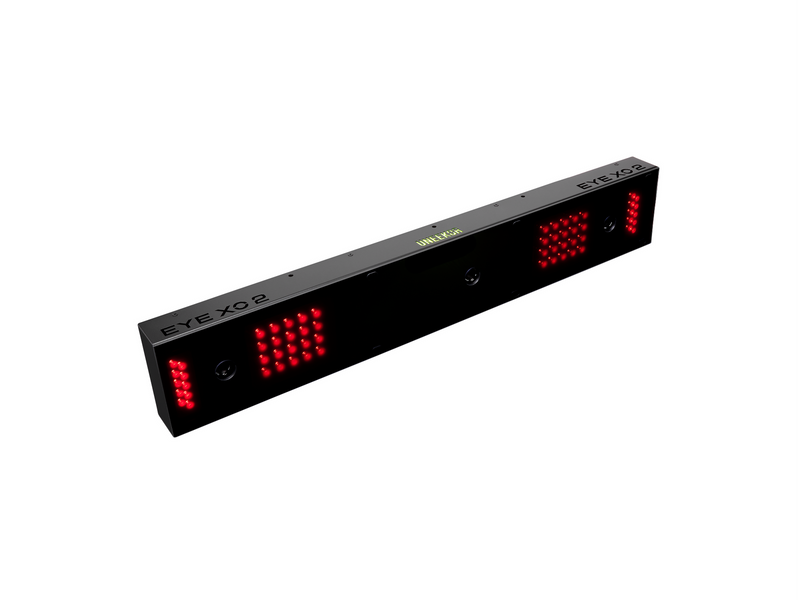

Overhead EYE XO2 tracking. Three high speed infrared cameras capture ball and club data while keeping the launch monitor off the floor. A centered hitting area accommodates both right and left handed golfers.

Detailed 4K projection. The BenQ LK936ST combines 3840 × 2160 resolution with 5,100 ANSI lumens and image warping controls for installation on a curved screen. Final alignment is part of the room setup.

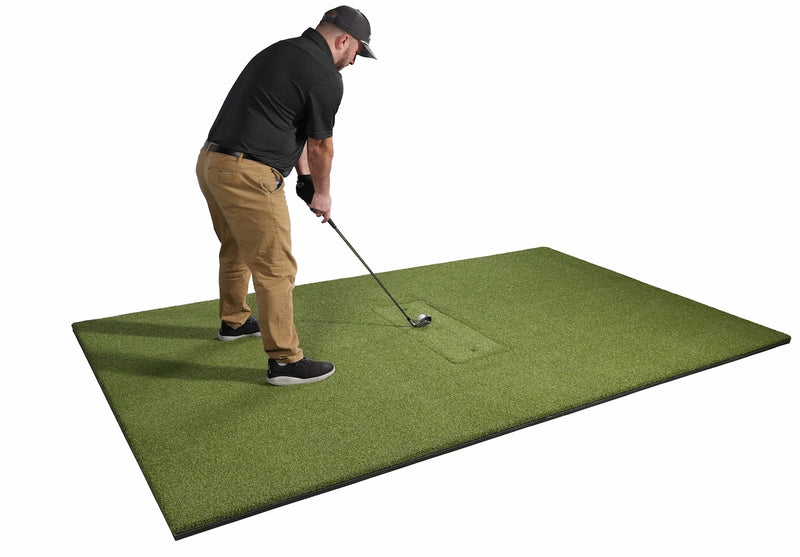

A generous practice platform. The 6 × 10 ft centered HotShot mat includes a replaceable Standard hitting strip, matching rubber base, ball tray, and 40 indoor tees.

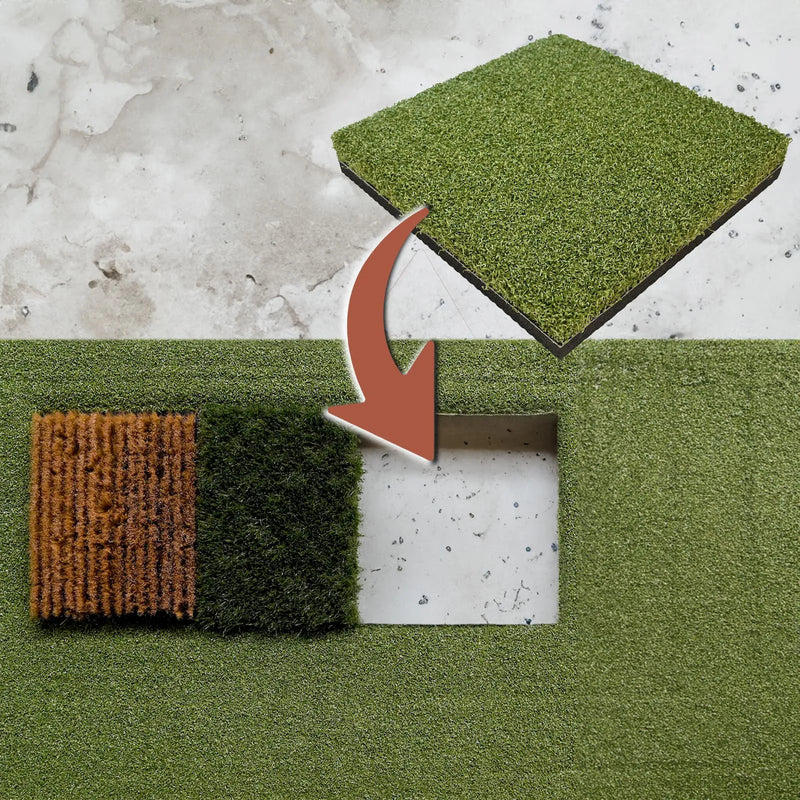

Trouble Mat integration. The included HotShot converter accommodates the EYE XO2 rough and bunker inserts in the mat’s existing cutout. Use a supported Uneekor software mode and calibrate each hitting position.

A coordinated enclosure assembly. Matching framing pipes, rear cover, rear cover pipes, and a safety baffle complement the curved enclosure kit.

Launch monitor: Uneekor EYE XO2, overhead mounted

Tracking system: Three high speed infrared cameras

Hitting zone: 28 × 21 inches

Player orientation: Right and left handed play

Enclosure: Carl’s Curved Golf Enclosure with selected impact screen

Screen materials: Premium White or High Contrast Gray

Nominal enclosure sizes (height × width): 9 × 14, 9 × 15, 9.5 × 14.5, 9.5 × 16, 10 × 15, or 10 × 17 ft

Enclosure depths: 8, 10, or 15 ft; nominal dimensions are not minimum room dimensions

Screen construction: Three layers of impact resistant polyester

Frame: Matching pipe kit with 2 inch trade size EMT, approximately 2.197 inch outside diameter

Projector: BenQ LK936ST laser projector

Native resolution: 3840 × 2160, 4K UHD

Brightness: 5,100 ANSI lumens

Projector throw ratio: 0.81 to 0.89

Hitting mat: Carl’s HotShot 6 × 10 ft with centered hitting insert

Mat thickness: Approximately 1.75 inches before the separate rubber base

Replaceable hitting strip: Standard 3 Tee insert

Trouble Mat integration: HotShot Trouble Mat Converter with EYE XO2 rough and bunker inserts

Use: Indoor golf simulation

Computer platform: Compatible Windows PC required separately

Enclosure assembly: Carl’s Curved Golf Enclosure Kit in your selected nominal size, depth, and screen material, with BlackStop surround, steel fittings, foam inserts, ball bungees, and zip ties. Every configuration includes its matching pipe framing kit, back cover kit, rear pipe kit, and one matching safety baffle.

Launch monitor: One Uneekor EYE XO2 with mounting bracket and supplied mounting hardware, calibration board, club stickers, rough and bunker Trouble Mats, power supply and cable, CAT6 cable, and USB Ethernet adapter. The included Player software provides the core practice tools.

Projection: One BenQ LK936ST 4K laser projector with manufacturer supplied remote, batteries, power cord, HDMI cable, and documentation. Ceiling mount and any longer display cable are selected separately.

Hitting area: One Carl’s HotShot 6 × 10 ft centered mat, Standard 3 Tee hitting strip, matching 6 × 10 rubber base, ball tray, 40 HotShot indoor golf tees, and one HotShot Trouble Mat Converter. The converter is used with the included EYE XO2 rough and bunker inserts in place of the Standard strip.

Sold separately: Windows gaming PC, paid simulator software or memberships beyond the included Player tier, projector ceiling mount, additional display and installation cabling, landing turf, custom flooring, furniture, golf clubs, golf balls, and installation service. Swing Optix cameras are not included in this configuration.

Room planning: Your selected enclosure height, width, and depth are nominal, not minimum room dimensions. Allow for the full frame, rear cover, screen clearance, hitting position, and an unrestricted driver swing for every player. Confirm the dimension drawing for your selected curved enclosure size before ordering. A listed combination does not guarantee compatibility with every room or mounting position.

Launch monitor placement: Install EYE XO2 according to Uneekor’s mounting and calibration instructions, approximately 9 to 10 ft above the finished hitting surface and 3 ft 6 in in front of the tee position. Include the mat and rubber base height in this measurement. Use a structurally suitable mounting surface.

Projection and installation: Confirm the LK936ST lens position, image width, throw distance, curved screen alignment, ceiling mount, and cable route before installation. Image warping may require tradeoffs in other digital image adjustments. A universal mount does not establish room fit or attachment to the enclosure frame.

Computer and software: A compatible Windows gaming PC with a dedicated graphics card and an appropriate 4K display connection is required separately. Check current Uneekor and selected simulator software requirements before purchasing a PC. Player practice software is included; paid memberships or course software may be needed for your preferred experience.

Trouble Mat setup: Position and calibrate the rough and bunker inserts within the EYE XO2 hitting zone. Use supported Uneekor software. Third party course software is not promised to recognize Trouble Mat surfaces. The converter and Trouble Mats replace the Standard strip in the mat cutout.

Power and connections: Provide suitable electrical outlets and a wired connection between the EYE XO2 and PC. Check the included power and Ethernet cable lengths against your planned route. The projector’s supplied HDMI cable may need to be replaced with a longer cable rated for the desired 4K signal.

Delivery and preparation: Available for delivery within the United States. Confirm access, delivery arrangements, and current production timing with Elite Swing Studio before ordering. Assembly, calibration, room preparation, flooring, and installation labor are not included.
