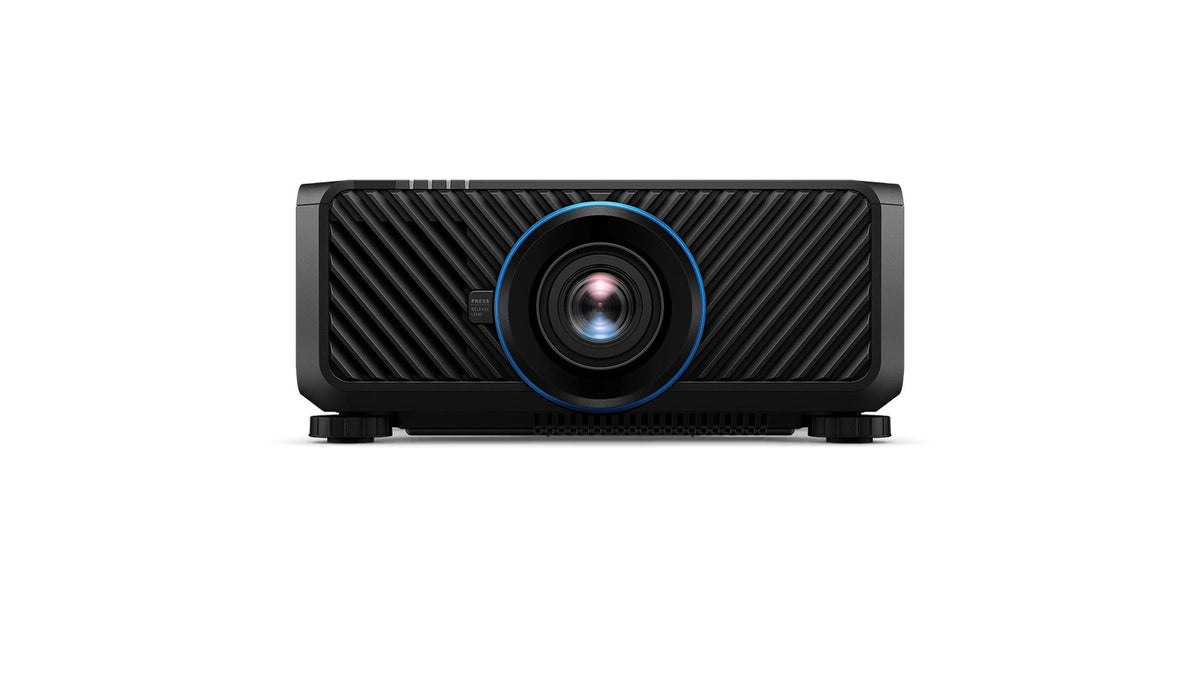

BenQ LU9800 laser projector front view showing the lens, product photo on a transparent background

BenQ LU9800 laser projector angled left front three quarter view, product photo on a transparent background

BenQ LU9800 laser projector angled right front view showing the side connection panel and lens

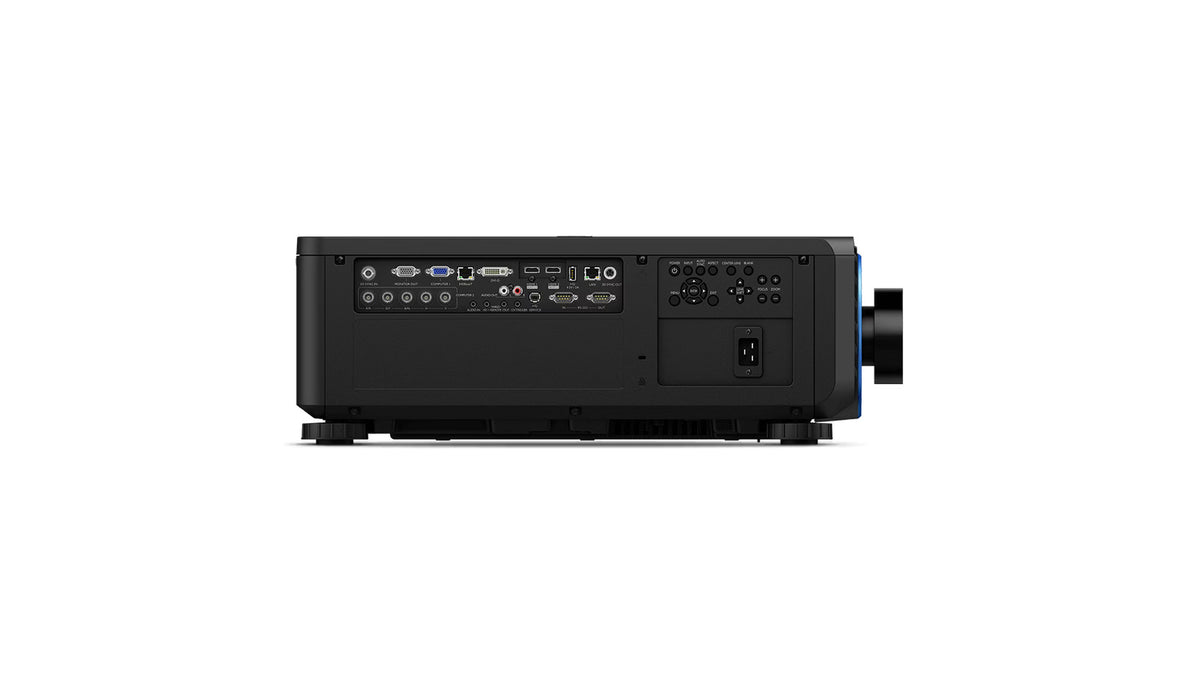

Side view of the BenQ LU9800 laser projector showing the full input, output, and control panel

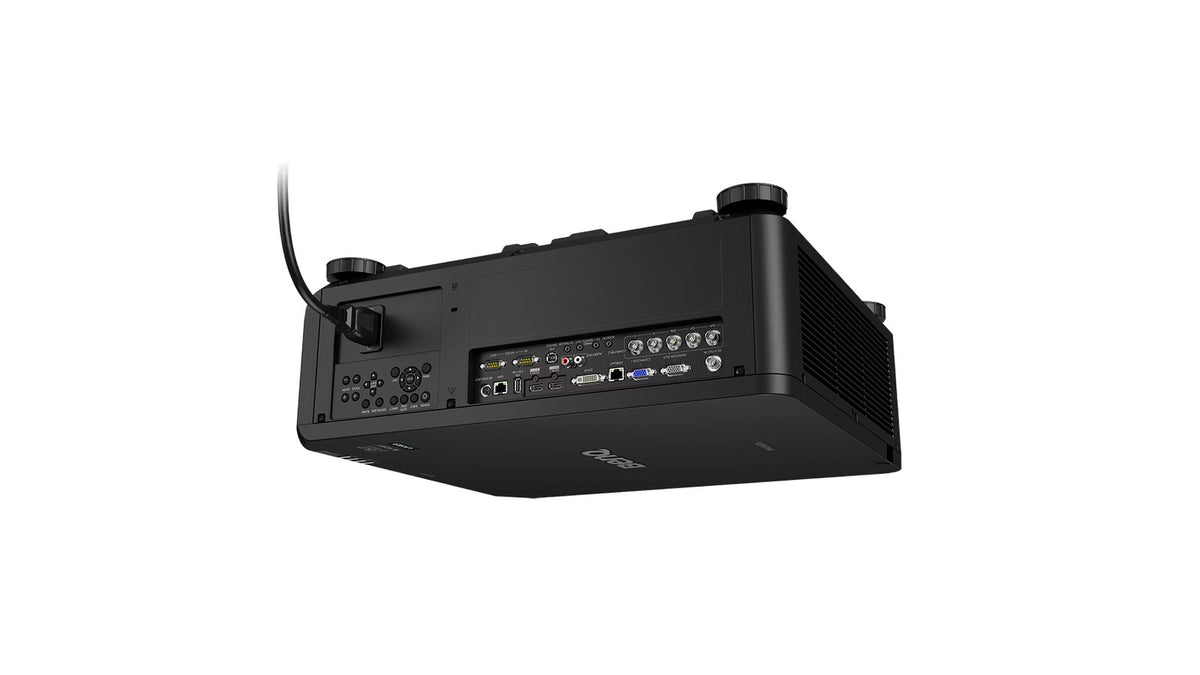

Rear angled view of the BenQ LU9800 laser projector showing the connection panel with power cord attached and adjustable feet

BenQ LU9800 laser projector low front left angled view, product photo on a transparent background

Comparison graphic showing XGA, WXGA, FHD, and WUXGA resolution formats for the BenQ LU9800 laser projector

BenQ LU9800 10000 Lumen WUXGA Laser Golf Simulator Projector

Q: What is the difference between BenQ golf simulator projectors?

BenQ projectors differ in resolution, brightness, throw ratio, light source, lens options, and installation flexibility.Some models are designed for short throw placement, which can help reduce shadows and work better in compact simulator rooms. Other models may offer higher brightness or 4K resolution for golfers who want a more premium image across a large impact screen.The right model depends on your screen dimensions, room lighting, mounting distance, desired image quality, and budget.

Q: How do I know if a BenQ projector will fit my golf simulator room?

The most important specifications are the projector's throw ratio, screen dimensions, mounting distance, brightness, and aspect ratio.Before purchasing, measure the width and height of your impact screen and determine where the projector can safely be mounted. The projector must be capable of filling your screen from that available distance without interfering with the golfer or launch monitor.Elite Swing Studio can help you compare your room and screen dimensions with the projector specifications before you purchase.

by BenQ

SKU LU9800-001

Save $3,500.00

$17,499.00

$17,499.00 - $17,499.00

$17,499.00

$13,999.00

$13,999.00 - $13,999.00

$13,999.00

Book a Free Studio Design Consult

Not sure it fits your room? Talk with a specialist first: (619) 927-6193

Free shippingOn most BenQ products
Arrives in 5 to 8 business daysFor in stock items. Custom and backordered items may take longer.
Price match guaranteeFound it for less at an authorized US retailer? We'll match it.

Pairs Well With

Everything else you need for a complete golf room.

Want the whole room planned? Get a free studio design

BenQ LU9800 WUXGA 10,000 ANSI Lumen Laser Projector | LU9800-001

Bring exceptional brightness and professional grade projection performance to large golf simulator rooms, commercial installations, and premium entertainment spaces with the BenQ LU9800. Delivering an impressive 10,000 ANSI lumens, the LU9800 is designed to produce bright, detailed images even in environments where controlling ambient light may be difficult.

Its WUXGA 1920 x 1200 resolution, 3,000,000:1 contrast ratio, and 95% Rec. 709 color coverage provide clear imagery, strong contrast, and natural color reproduction across large projection surfaces. The powerful laser light source eliminates traditional lamp replacements while providing up to 70,000 hours of operation in Dimming Mode.

What truly separates the LU9800 is its installation flexibility. The projector supports nine interchangeable powered lens options, covering throw ratios from ultra short throw configurations to long distance installations. Motorized lens control, lens shift, lens memory, 2D keystone correction, and flexible 360 degree installation allow the LU9800 to accommodate complex simulator rooms and custom commercial environments.

For high end simulator installations requiring maximum brightness, large image sizes, and professional installation flexibility, the LU9800 provides the performance and reliability expected from BenQ's commercial laser projection lineup.

Important: The BenQ LU9800 projector is supplied without a projection lens. A compatible BenQ lens must be selected separately based on the room dimensions, screen size, and projector mounting location

100% American Owned & Operated

We're a locally Owned & Operated Business

Lifetime Support

Real help from a real person, for as long as you own it.

Secure Online Payment System

All our transactions are protected and secure

Price Match Guarantee

Found it for less at an authorized US retailer? We'll match it.

Questions? Call or Text (619) 927-6193

Bring your golf simulator to life with BenQ golf simulator projectors. Designed specifically for indoor golf, BenQ combines bright projection, sharp image quality, short throw technology, and immersive color to create a more realistic experience on the course.

From compact home setups to premium golf studios, BenQ projectors are built to deliver a clear, vibrant picture that makes every round feel more immersive.

10,000 ANSI Lumens for Large Venues

Exceptionally bright WUXGA projection is built for large screens and environments with ambient light.

10,000 ANSI Lumens of brightness
WUXGA 1920 x 1200 native resolution, 16:10 aspect ratio
3,000,000:1 contrast ratio with 95% Rec.709 color coverage

Nine Interchangeable Lenses

Choose from nine optional lenses covering throw ratios from 0.38 to 8.26 to accommodate a wide variety of room dimensions.

Nine optional interchangeable lenses, sold separately
Throw ratios from approximately 0.38 to 8.26 depending on lens
Projection size from approximately 50 to 500 inches with standard lens

Motorized Lens Control with Lens Memory

Motorized lens shift, zoom, and focus provide precise professional installation adjustment, with lens memory for stored configurations.

Motorized lens shift, zoom, and focus depending on selected lens
Lens memory stores positions for different configurations
360 degree installation and portrait projection support

Laser Reliability, Up to 70,000 Hours

A sealed optical engine and laser light source rated up to 70,000 hours in Dimming Mode support dependable long term operation.

Laser light source up to 70,000 hours in Dimming Mode
Sealed optical engine protects internal components
HDBaseT connectivity plus dual HDMI inputs

Product Resources & Downloads

Warranty: 3 Year BenQ Limited Warranty covering parts and labor.

BenQ LU9800 Installation Guide

Complete the Room

Get a free studio design

Frequently asked questions

What is BenQ and why are its projectors popular for golf simulators?

BenQ is a display and projector brand known for high brightness, sharp image quality, laser light sources, and installation focused projector technology. Many BenQ models are well suited for golf simulators, home theaters, commercial spaces, and large screen projection.

For golf simulator use, BenQ offers models with short throw capability, strong brightness, high resolution, and flexible mounting options that can help create a clear and immersive image across an impact screen.

What do I need to use a BenQ projector with a golf simulator?

To use a BenQ projector in a golf simulator, you typically need a compatible computer or device running your simulator software, an impact screen, and the correct video connection between your computer and projector.

You will also need to make sure the projector is positioned at the correct distance from the screen based on its throw ratio. Screen size, aspect ratio, room depth, ceiling height, and mounting location should all be considered before installation.

What is the difference between BenQ golf simulator projectors?

BenQ projectors differ in resolution, brightness, throw ratio, light source, lens options, and installation flexibility.

Some models are designed for short throw placement, which can help reduce shadows and work better in compact simulator rooms. Other models may offer higher brightness or 4K resolution for golfers who want a more premium image across a large impact screen.

The right model depends on your screen dimensions, room lighting, mounting distance, desired image quality, and budget.

Do I need a 4K projector for a golf simulator?

No. A 4K projector is not required to build a high quality golf simulator.

A 4K model can provide sharper course detail and a more premium visual experience, especially on larger impact screens. However, brightness, throw ratio, screen quality, room lighting, and proper installation can be just as important as resolution.

A properly matched projector is more important than simply choosing the highest resolution available.

How do I know if a BenQ projector will fit my golf simulator room?

The most important specifications are the projector's throw ratio, screen dimensions, mounting distance, brightness, and aspect ratio.

Before purchasing, measure the width and height of your impact screen and determine where the projector can safely be mounted. The projector must be capable of filling your screen from that available distance without interfering with the golfer or launch monitor.

Elite Swing Studio can help you compare your room and screen dimensions with the projector specifications before you purchase.

The BenQ experience

Real golfers. Real insight.

Customer perspectives on clarity, color, and immersive golf.

The 4K resolution and color accuracy are unbelievable. It makes the whole experience feel real.

Robert DavisMarian Athletic Center · LK936ST

…the BenQ golf projector, with its 4K support, offers highly accurate visuals…

Satoshi TanakaDion Tokyo · LK936ST

It’s a critical piece of my members’ practice and of my business.

Ryan HixonLevelUp Golf · LK936ST

We were very happy with how easy it was to install.

Pawat PrachoomsrisakulLimitless Golf Studio · AH700ST

BenQ was the only company that met all of our requirements…

Retsu KakikuboNankai Golf Labo · LH820ST

Players say the visuals are so realistic it makes them want to come back…

Kriangkrai TanrudeeMahachai Driving Range · LU935ST

Selected review excerpts published by the manufacturer. These are not verified purchases from Elite Swing Studio.
